ERCF v2 / v3 D-Cut Gear Shaft — by gate count
Couldn't load pickup availability
The gear drive shaft for an ERCF v2 or v3, cut to the BOM length for your gate count. One shaft runs the whole gate row; pick the variant that matches your build and skip the hacksaw.
Which variant
| Gates | D-cut shaft | Matching 8mm rods | Matching 2020 extrusion |
|---|---|---|---|
| 4 | 164mm | 2× 145mm | 147mm |
| 6 | 210mm | 2× 191mm | 193mm |
| 8 | 256mm | 2× 237mm | 239mm |
| 9 | 279mm | 2× 260mm | 262mm |
| 12 | 348mm | 2× 329mm | 331mm |
Lengths are the official BOM formula (72mm + 23mm per gate). The v3 BOM keeps the v2 gate pitch, so the same shaft serves both versions; upgrading v2 to v3, your shaft carries over and it is the extrusion (now tapped) and the gear motor that change. The BOM is written for any gate count; vendors default to 4, 8 and 12, so we cut 6 and 9 as well.
Specifications

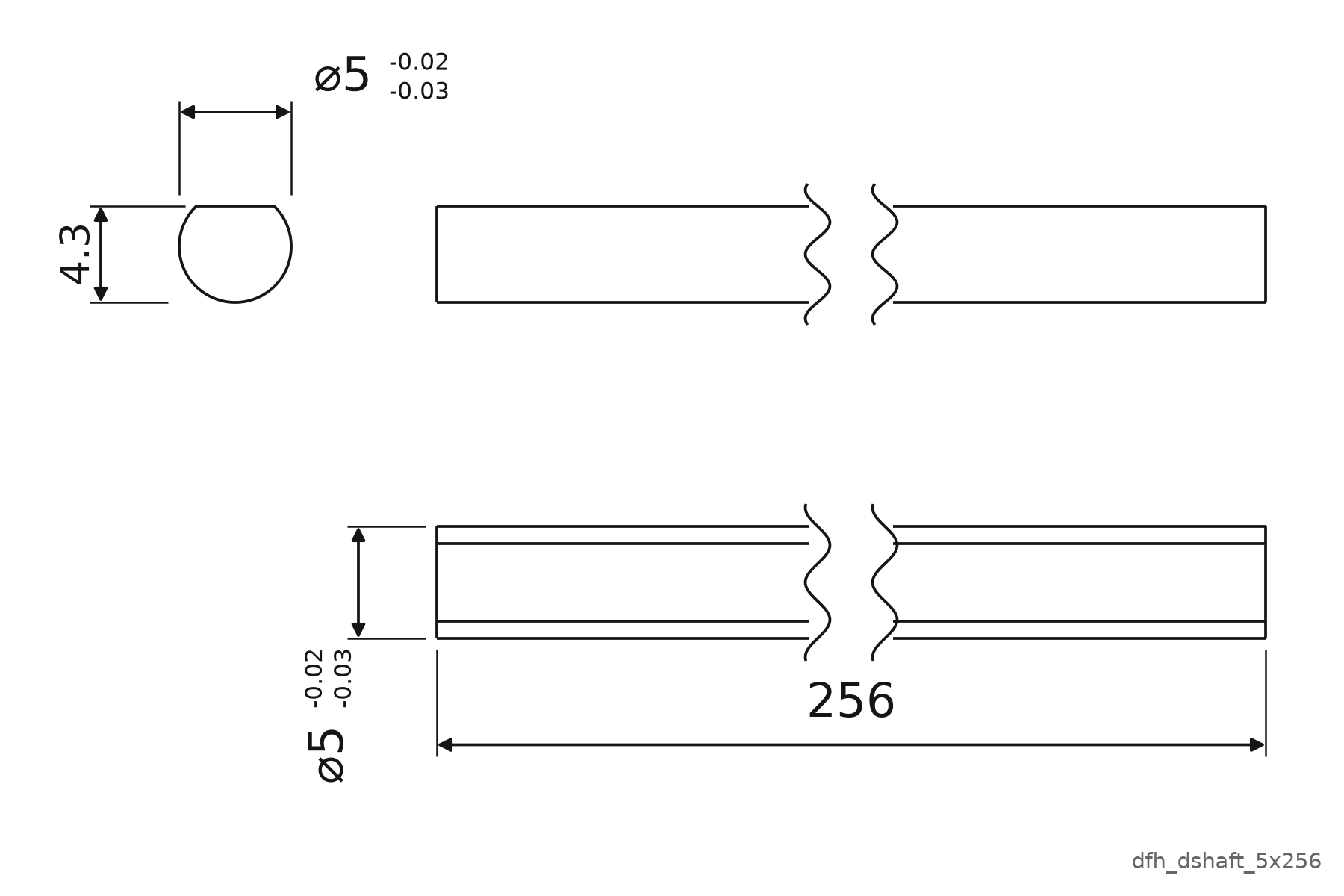

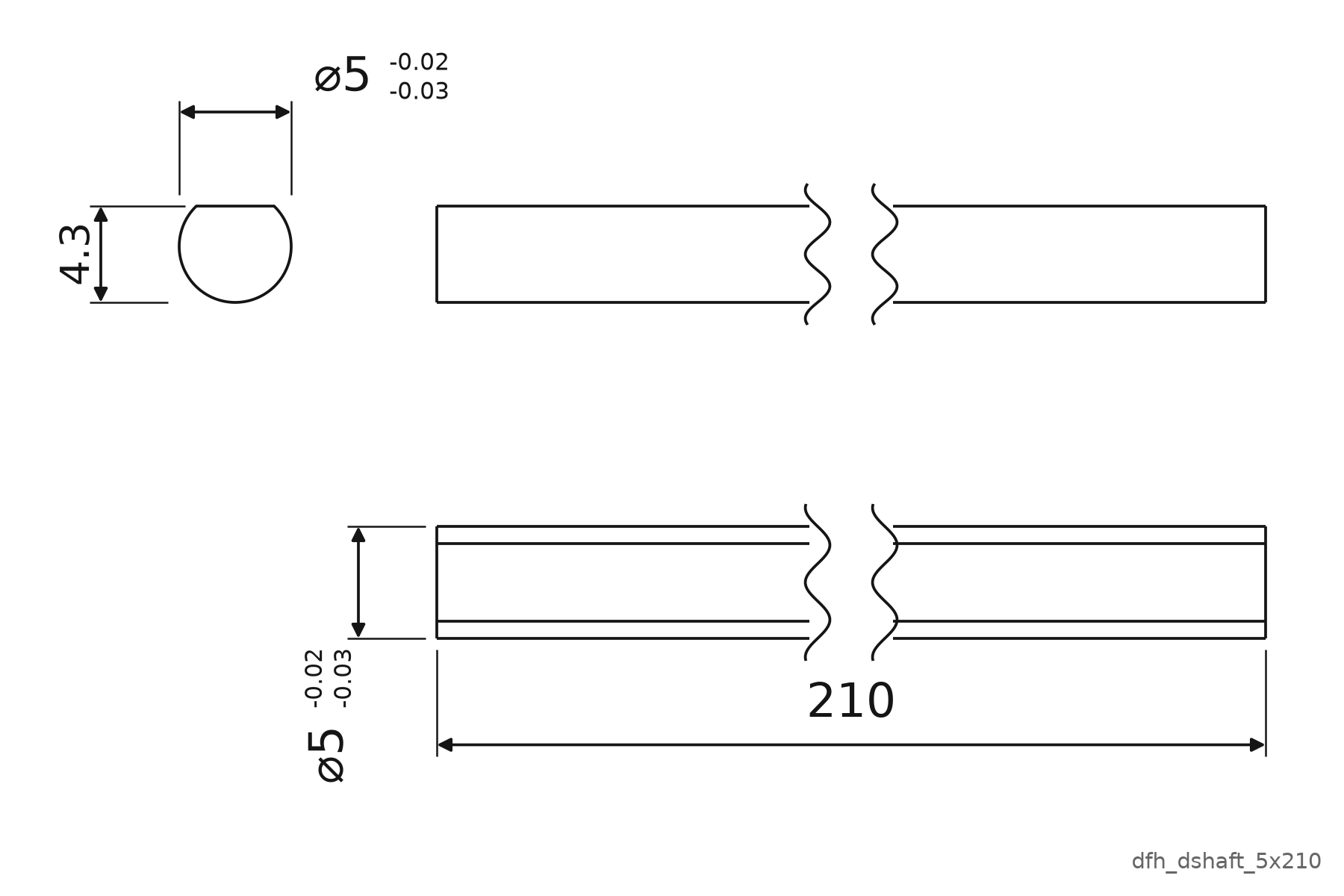

- Diameter: 5mm, −0.02 / −0.03 (supplier drawing in the photos).
- Flat: 4.3mm across the flat (0.7mm deep), full length.
- Material: stainless steel, bright finish, not hardened.
Not included
- 8mm smooth rods and the 2020 extrusion. The 2020 Extrusion listing carries all five ERCF lengths.
- Gears, bearings, motors, printed parts. The V2.x Community Edition kit is the full hardware set.
Gotchas
- v1.1 builds use a different length table (159 / 201 / 269 / 337 for 4 / 6 / 9 / 12 carts). Those are on the v1.1 shaft listing.
- Same shaft, same price and same stock as the matching length on our 5mm D-Cut Shaft page.
